Automatic Gear Rack Straightening Machine (Mechanical Arm Loading)

DATE:2022-09-20   VISITS:1015

SHANGDA straightening machine

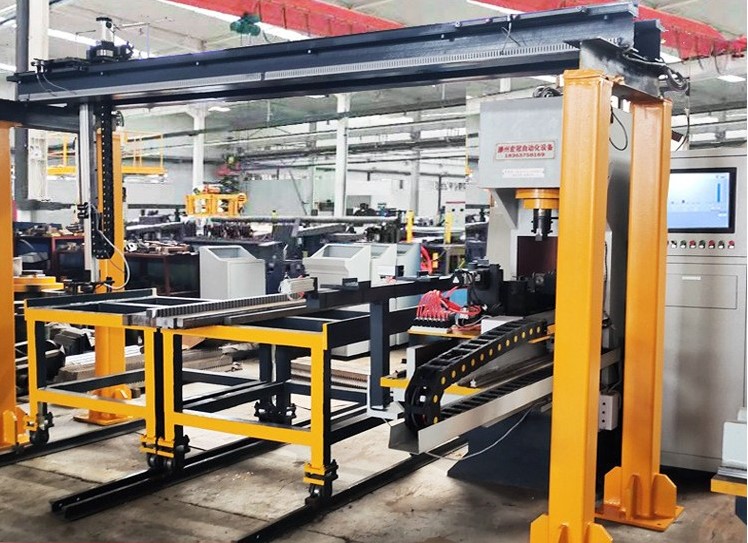

Automatic Gear Rack Straightening Machine (Mechanical Arm Loading)


Bundles of bars/tubes/profiles or shafts are loaded onto an accumulation deck and then automatically fed to the straightening equipment.

In the straightening process, the stock or component is rotated to measure the runout with sensors at multiple data points along its length.

This data is sent to the PLC where it is compared to the straightness specification to determine where it needs to be corrected.

The PLC determines the initial point needing correction and the servo press is indexed along the workpiece by a servo rail to the indicated location where it then bends the

stock/part to specification.

The piece is then rotated again to collect the data points and determine if there are other points that need attention. This process continues until all the data points are found

to be within specification. From there, the workpiece may be moved out of the machine, automatically or by an operator, to the next process.
