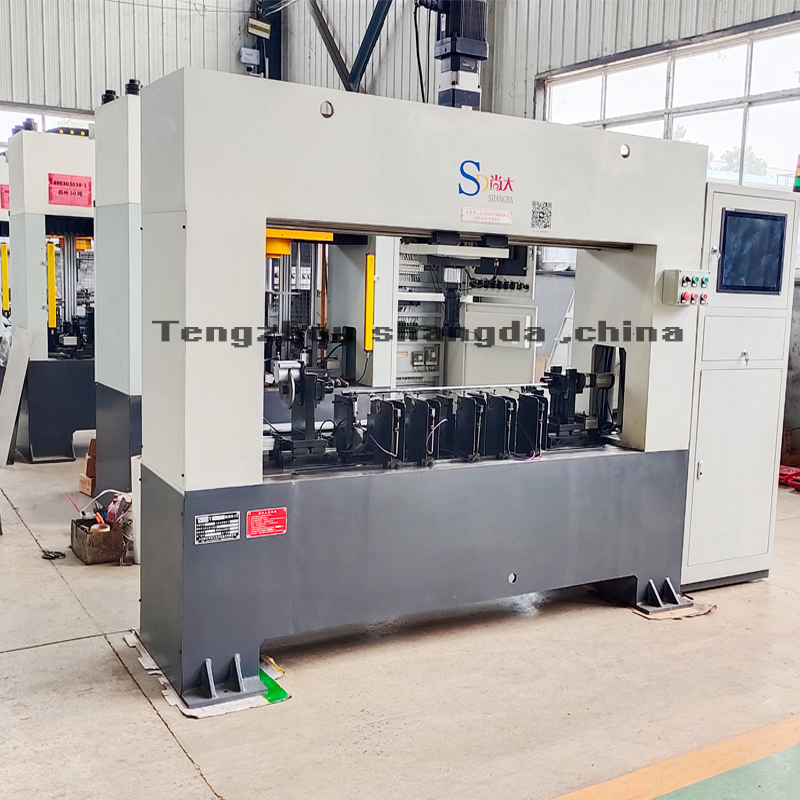

shaft straightening machine manufacturer

1. manual or customer selected manipulator to put the batch into the bin, select the corresponding workpiece calibration program.starting device.

2. The "material detection switch" on the workbench detects that the workpiece is placed in place, and the automatic calibration process begins after the manual or mechanical hand exits.

3. The friction wheel drive device clamps the workpiece under the pneumatic thrust.

4. The servo motor drives the workpiece to rotate, and the measurement control system collects the displacement sensor data of the measurement point and corrects the measurement point in real time.
